PU Layflat Hose Designed for Water Discharge Abrasion Resistant
Product Application
Water transfer in harsh environment
Dewatering in mining
Frac water transferring
Long distance water transferring
Product Introduction
Mileflex is one type of super heavy-duty through-the-weave polyurethane (PU) covered hose.
The reinforcement is made from circular woven filament polyester yarn. The "extrusion through-the-weave" production method gives a very strong bonding between cover and lining as well as firmly encapsulating the woven polyester.
The circular woven filament polyester reinforcement ensures very high tensile strength and facilitates easy towing with tractors without risk of damage.
The interlocking weave prevents the hose from lengthwise extension when pulled or pressurized. This avoids delamination of cover or lining from the woven reinforcement and minimizes "snaking" and twisting.
Product Specification
|
Mileflex™TPU Layflat Hose
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Product Features
Inner tube and cover: Smooth PU cover and tube.
Reinforcement: Circular woven polyester jacket
Operating Temperature Range: From -60° F to 176°F (-50° C to 80° C)
Standard Color: Black, other colors available per request
Standard Length: 50ft, 100ft, 300ft/91.5m, 330ft/100m, 660ft/200m; other lengths available per request;
Couplings: LDHC V couplings, LDHC FM Couplings, LDHC S (Storz) Couplings, etc.
Warranty: 5 years guarantee
Production Technology
The manufacturing process of extruded through the weave hose does not involve the use of glues or adhesives.
Product Tags:
|
|

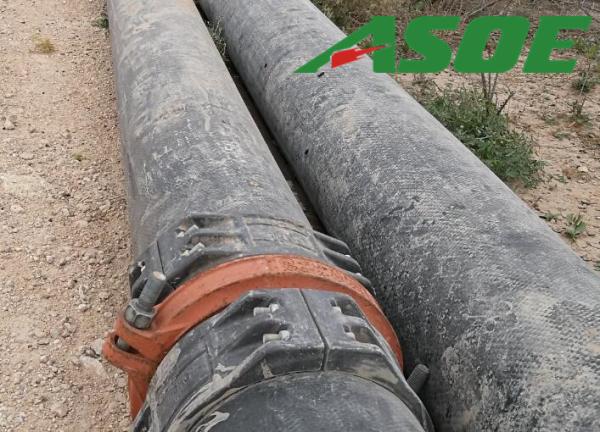

PU Interlocking Weave Lay Flat Discharge Hose Abrasion Resistant Easy Towing Images
|
