Abrasion Resistance Lay Flat Irrigation Hose PVC Nitrile Rubber Compound

Name: Abrasion Resistance Lay Flat Irrigation Hose PVC Nitrile Rubber Compound
Brand: ASOE
Price: 1 USD

Brand Name : ASOE

Model Number : Wovenflex Extra

Certification : ISO

Place of Origin : China

MOQ : 10cm

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000m per week

Delivery Time : depends on your order quantity

Packaging Details : Standard Export Package

Product Name : Lay Flat Discharge Hose

Raw Material : PVC and Nitrile Rubber Compound

Application : agricultural irrigation, water discharge, etc

Operating Temperature Range : From -36° F to 178° F (-37° C to 81° C)

Standard Color : Yellow or Black or Others

Standard Length : 100, 300,330 , etc

Contact Now

PVC and Nitrile Rubber Compound Lay Flat Irrigation Hose Abrasion Resistance

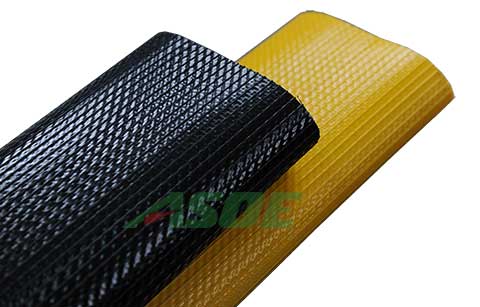

Wovenflex Extra is one type of “through-the-weave” heavy duty PVC/NBR layflat hose. This hose features a unique one-piece, through-the-weave construction and attains its higher working pressure from a synthetic woven polyester reinforcement than Spiral plies; its excellent durability is derived from a high-tensile PVC/NBR rubber compound, which completely encases the jacket. The ribs on the

Inner tube and cover: PVC/NBR compound, smooth cover, both tube and cover are co-extruded to obtain maximum bending.
Reinforcement: Circular woven polyester jacket
Operating Temperature Range: From -36° F to 178° F (-37° C to 81° C)
Standard Color: Yellow, other colors available per request
Standard Length: 50ft, 100ft, 300ft/91.5m, 330ft/100m; other lengths available per request.

Wovenflex™ Extra Heavy Duty PVC/NBR Layflat Hose
ID		Wall Thickness		Weight		Working Pressure		Bursting Pressure
Inch	mm	Inch	mm	lbs/ft	kg/m	PSI	Bar	PSI	Bar
4	103+2.0	0.13	3.2	0.87	1.29	150,200	10,14	450,600	30,42
6	155+2.5	0.15	3.8	1.5	2.24	150,200	10,14	450,600	30,42
8	204+3.0	0.16	4	2.4	3.5	150	10	450	30
10	255+3.0	0.17	4.2	2.89	4.32	150	10	450	30

Application: suitable for agricultural irrigation, mining, industrial and construction water discharge, water transfer for quarries, relay supply lines, portable hydrants etc.

Recommended for:

Agricultural Irrigation Solutions
Industrial Water Discharge Solutions
Mining Dewatering Solutions
Others
