Mining Dewatering NSF61 660ft High Pressure PU Flexible Hose

Product Categories
Asoe Hose Manufacturing Inc.
Contact Now

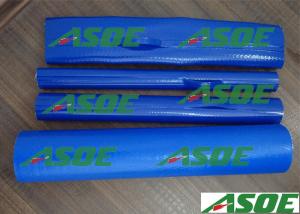

Mining Dewatering NSF61 660ft High Pressure PU Flexible Hose

  • 1
  • 2

Brand Name : ASOE

Model Number : Welline

Certification : ISO,NSF61

Place of Origin : China

MOQ : 10cm

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000m per week

Delivery Time : depends on your order quantity

Packaging Details : Standard Export Package

Product Name : PU layflat hose for water well solutions

Raw Material : Polyurethane

Application : pumping well water, mining dewatering etc

Operating Temperature Range : From -60° F to 176° F (-50° C to 80° C)

Standard Color : Blueor others

Standard Length : 300,330,660ft, etc

Size : 5inch

Working Pressure : 25bar

Bursting Pressure : 55bar

Contact Now

WATER WELL RISING HOSES

Description

Welline is one type of through-the-weave polyurethane (PU) covered hoses which are made of PU materials approved according to NSF 61 standard. Welline hoses shall be made from 100% high tenacity virgin synthetic yarn circular woven and completely, totally embedded in the PU compound, excellent protected against mechanical damage, forming a single homogenous construction without the use of any glues or adhesives of any type. The structure of Welline ensure that exposure to seawater and contamination by most chemical substances, hydrocarbons, oils, alkalis, acids and greases must have no effect on the short or long term performance of Welline hose.

Inner tube and cover: Smooth PU cover and tube. One strip of reinforced polyurethane on the side of cover to support the electrical cables and accessories
Reinforcement: Circular woven polyester jacket
Operating Temperature Range: From -60° F to 176° F(-50° C to 80° C)
Standard Color: Blue, other colors available per request
Standard Length: 300ft/91.5m, 330ft/100m,660ft/200m; other lengths available per request;
Couplings: Stainless steel couplings with BSP thread,etc.
Warranty: 10 years guarantee
Parameter
Welline™ PU Layflat Hoses
ID
Wall Thickness
Weight
Working Pressure
Bursting Pressure
Inch
mm
Inch
mm
lbs/ft
kg/m
PSI
bar
Kg
Lbs
1 1/2
39+1.5
0.1
2.4
0.22
0.33
425
30
920
65
2
52+1.5
0.1
2.4
0.37
0.55
425
30
920
65
2 1/2
65+1.5
0.11
2.9
0.41
0.61
425
30
920
65
3
77+2.0
0.1
2.5
0.64
0.95
390
27
860
60
4
104+2.0
0.13
3
0.94
1.4
380
26
840
58
5
128+2.0
0.15
3.8
1.14
1.7
360
25
800
55
6
155+2.5
0.15
3.8
1.68
2.5
360
25
800
55
8
204+3.0
0.17
4.3
2.3
3.4
260
18
645
45


Application

Fresh Water Supply Solutions in mines, agriculture, water utilities, industrial, solar etc.
Emergency Mine Dewatering
pumping well water

Comparable to
Well Riser of Tipsa
Boreline of Crusader/Hose Solution

Color
Blue (Other color available of request)
